red-y compact series – Mounting kit

Panel mounting kit for the mass flow meters red-y compact series

Schalttafel Einbau-Kit für batteriebetriebene digitale Massenmesser für Gase red-y compact series

Panel mounting kits for the digital mass flow devices of the red-y compact series.

Two different mounting kits are available:
Kit A with mounting bracket and Kit B with mounting bracket and front bezel.
Both panel mounting kits can be used for device generation compact 1 & 2.

All required mounting screws are included.

Panel Mounting Kit A – Mounting bracket

Device generation red-y compact 1 series red-y compact 2 series
G1/4″ version Art.-N° 328-3803 Art.-N° 328-3803
G1/2″ version Art.-N° 328-3804 Art.-N° 328-3804
Ingress protection class IP-50 IP-50
Mounting screws Included Included

Panel Mounting Kit B – Mounting bracket with front bezel

Device generation red-y compact 1 series red-y compact 2 series
G1/4″ version Art.-N° 328-3801 Art.-N° 328-3801
G1/2″ version Art.-N° 328-3802 Art.-N° 328-3802
Ingress protection class IP-65 IP-50
Mounting screws Included Included

Note:
The front bezel of Panel Mounting Kit B partially or in full covers the Micro USB interface. Power supply via USB or firmware upgrade in installed condition therefore is not available.

Exploded and dimension drawing see datasheet panel mounting kit red-y compact series.

3D-Drawings are available with the red-y compact CAD 3D models.

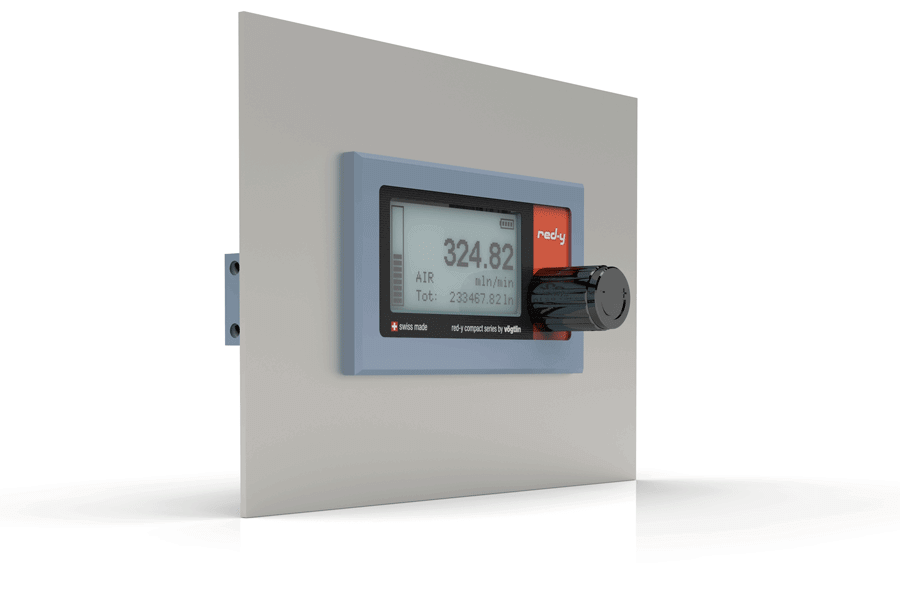

3D-View Panel Mounting Kit B – red-y compact series
