Combiners & Diverters

Integrated Solutions with our modular Gas Block Systems

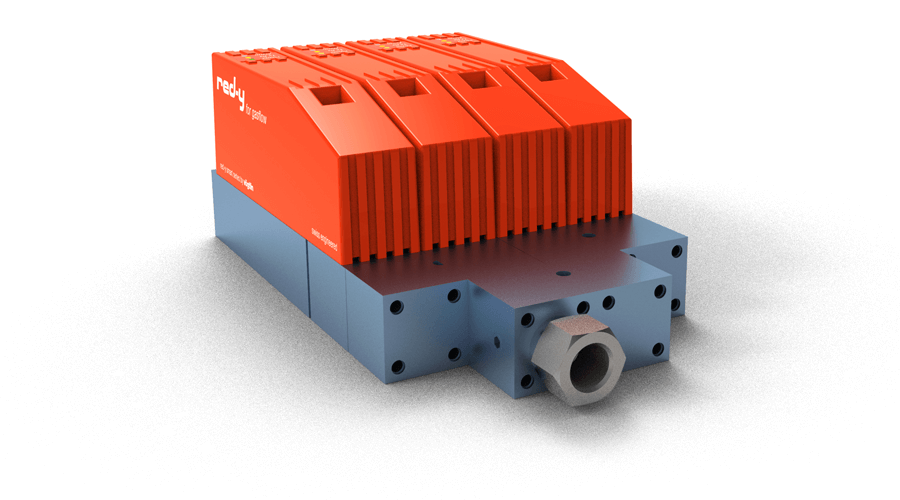

Modular gas collection system for easy integration of several MFCs

Vƶgtlin’s modular gas collection systems enable the easy integration of several digital flow meters and flow controllers of the red-y smart series into one combined system. Blocks with or without non-return valves are available.

GaszusammenfĆ¼hrungssysteme red-y smart series

Versions

Versions with GĀ¼” female thread, aluminium, seals material FKM*
Delivery incl. mounting screws, seals and connecting nipple GĀ¼” (at the outlet)

Specification of non-return valve: Flow rate 60 ln/min / Pressure drop āˆ†p 1.2 bar / Leak rate (Helium) < 1 x 10-6 mbar l/s

The systems are available as self-assembly kit or assembledā€‰/ā€‰leak tested.


Gas block system
WITHOUT non-return valve
WITH non-return valve

Gas Collection System GZB21/GRB21
Article-NĀ° 327-6051

GZB21
2 Inputs – 1 Output
Dimensions (L x W x H):
50 x 25 x 25mm

Article-NĀ° 327-6054

GRB21
2 Inputs – 1 Output
Dimensions (L x W x H):
50 x 25 x 25mm


Gas Collection System GZB31/GRB31
Article-NĀ° 327-6052

GZB31
3 Inputs – 1 Output
Dimensions (L x W x H):
75 x 50 x 25mm

Article-NĀ° 327-6055

GRB31
3 Inputs – 1 Output
Dimensions (L x W x H):
75 x 50 x 25mm


Gas Collection System GZB41/GRB41
Article-NĀ° 327-6053

GZB41
4 Inputs – 1 Output
Dimensions (L x W x H):
100 x 50 x 25mm

Article-NĀ° 327-6056

GRB41
4 Inputs – 1 Output
Dimensions (L x W x H):
100 x 50 x 25mm


Single block stainless steel
WITHOUT non-return valve
WITH non-return valve

Gas Collection System GZB11/GRB11
Article-NĀ° 327-6150

GZB11
without non-return valve
(distance piece)
Dimensions (L x W x H):
25 x 25 x 25mm

Article-NĀ° 327-6154

GRB11
with non-return valve
Dimensions (L x W x H):
25 x 25 x 25mm


*Optional: G1/8″ female thread for outlet, seals material EPDM
Gas collection blocks with more than 4 channels and spare parts on request
