PRECISION GAS FLOW METERS & GAS FLOW CONTROLLERS

Variable Area Flowmeters for Gases with a wide Range of Options

Variable Area Flowmeters (VA-Flowmeters) for Gases V-100

Vogtlin’s V-100 is a classical variable area flow meter for gases and liquids with a broad line-up, great flexibility and extensive options.

The instruments are highly modular and adaptable for almost any requirement.

Measuring Tubes in 3 Sizes

The flow meters are available with three different glass tube lengths.

Measuring ranges from 0.04 ln/h up to 5000 ln/h for Air @ 1.21 bara / 20°C
Maximum pressure: 20 bar (290 psi) / Maximum temperature: 100°C

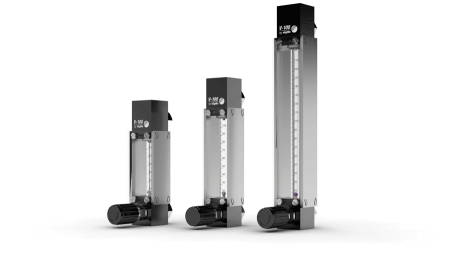

Variable Area Flowmeters (VA-Flowmeters) for Gases V-100 with 3 different tube sizes

Different Instrument Setups

In addition to standard rear ports, devices with lateral and vertical ports are available

Variable Area Flowmeter V-100 Setup S

VA-Meter V-100
Setup S (standard)

Variable Area Flowmeter V-100 Setup L

VA-Meter V-100
Setup L

Variable Area Flowmeter V-100 Setup R

VA-Meter V-100
Setup R

Variable Area Flowmeter V-100 Setup A

VA-Meter V-100
Setup A

Variable Area Flowmeter V-100 Setup T

VA-Meter V-100
Setup T

Variable Area Flowmeter V-100 Setup O

VA-Meter V-100
Setup O

Measuring Tube Scales

In addition to mm scales with flow rate table, glass tubes with direct reading or custom scales are available

Aluminium or Stainless Steel

The bodies are available in aluminium or stainless steel. Sealing materials FKM or EPDM

Tightly Closing Precision Control Valves

The devices are equipped with precise, hysteresis-free 15-way control valves. The valves are tightly closing.

Various Instruments Options

We offer a range of options for the flow meters:

  • Laboratory base
  • Limit contact (inductive)
  • Adaptation to customized gas line routing

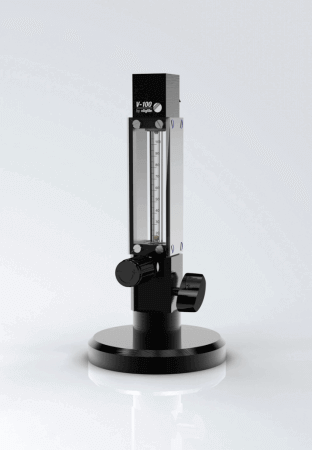

Variable Area Flowmeter V-100 with laboratory base

3-Year Warranty

High-quality components ensure long and trouble-free operation
(does not apply to calibration, options and accessories)

Types & Options V-100 Variable Area Flowmeters (VA-Flowmeters)

Variable Area Flowmeters (VA-Flowmeters) for Gases V-100 with 3 different tube sizes



V-100 Variable Area Flowmeter
The V-100 flowmeters are available in 3 different sizes
with valves at the inlet or outlet or without valve
and as aluminium or stainless steel version

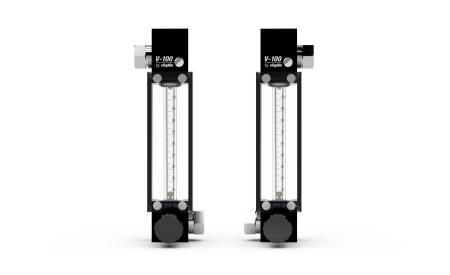

Variable Area Flowmeters (VA-Flowmeters) for Gases V-100 with different port setups



V-100 Variable Area Flowmeter Instrument Setups
V-100 commes along with many different instrument setups:
In addition to standard rear ports, lateral and vertical ports are available

See Core Features tab for more information

Downloads V-100 Variable Area Flowmeters (VA-Flowmeters)

139-2004_de_infoQVMflow.pdfV-Flow Line Product InformationProduct DatasheetsEN, DEEN, DE
139-2012_de_infoV100.pdfV-100 Product InformationProduct DatasheetsEN, DEEN, DE
139-3001_de_manualvflow.pdfV-Flow Line Operating InstructionsOperating InstructionsEN, DEEN, DE
