PRECISION GAS FLOW METERS & GAS FLOW CONTROLLERS

red-y smart series – Accessories

Cable Accessories for Mass Flow Meters & Controllers of the red-y smart series

Accessories for Thermal Mass Flow Controllers for Gases

With our wide range of cable and power supply accessories the thermal mass flow meters and mass flow controllers of the red-y smart series are immediately ready for operation.

Which cables are required to connect one thermal mass flow meter or controller to a PC?

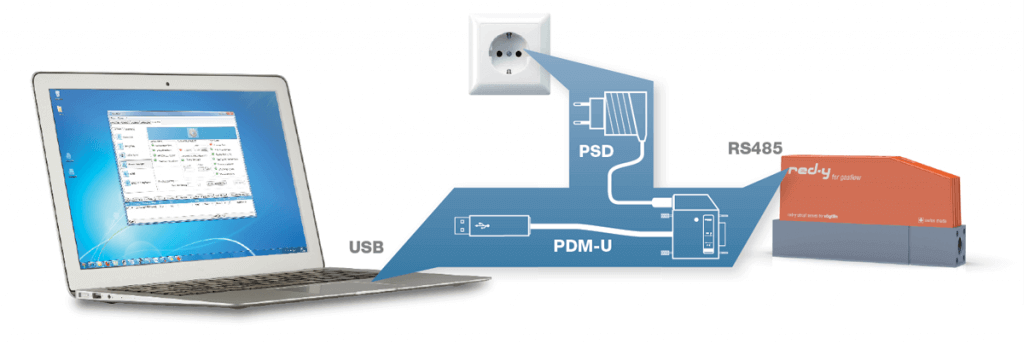

Connect a single Mass Flow Controller to a PC

PDM-U 328-2180 – Power Digital Module USB (1.5m)
Communication cable PC/red-y (active level converter USB/RS485)

PSD – Plug-Type Power Supply Device (1.8m)
Plug-type power supply 24Vdc, approx. 0.5A (12 W)

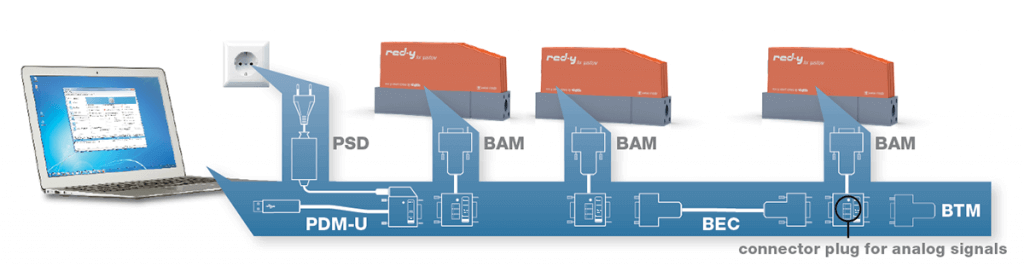

Which cables are required to connect several thermal mass flow meters or controllers to a PC?


USB Connection for Thermal Mass Flow Meters and Controllers

PDM-U 328-2180 – Power Digital Module USB (1.5m)
Communication cable PC/red-y (active level converter USB/RS485)

BAM 328–2151 Bus Analog Module (0.1m)
For the connection of one device
(e.g. the connection of 3 devices requires 3 BAM modules)

BTM 328-2139 – Bus Terminator Module
Termination resistor for bus communication

PSD – Desktop Power Supply Device (2m)
Desktop power supply 24Vdc, approx. 2.2A (53 W)

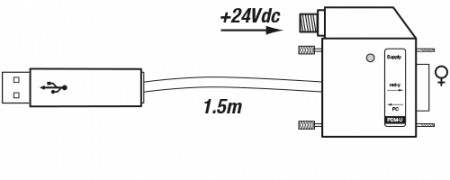

PDM-U 328-2180 – Power Digital Module USB (1.5m)

PDM-U 328-2180 – Power Digital Module USB (1.5m)

Communication cable PC/red-y galvanically separated
Active level converter USB/RS485
Powered by power supply PSD

» PDM-U PDF Datasheet

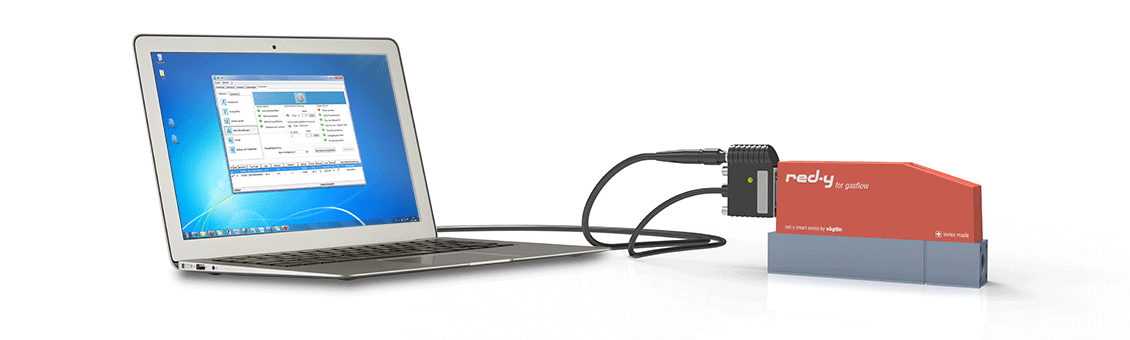

USB Cable for Mass Flow Meters and Controllers

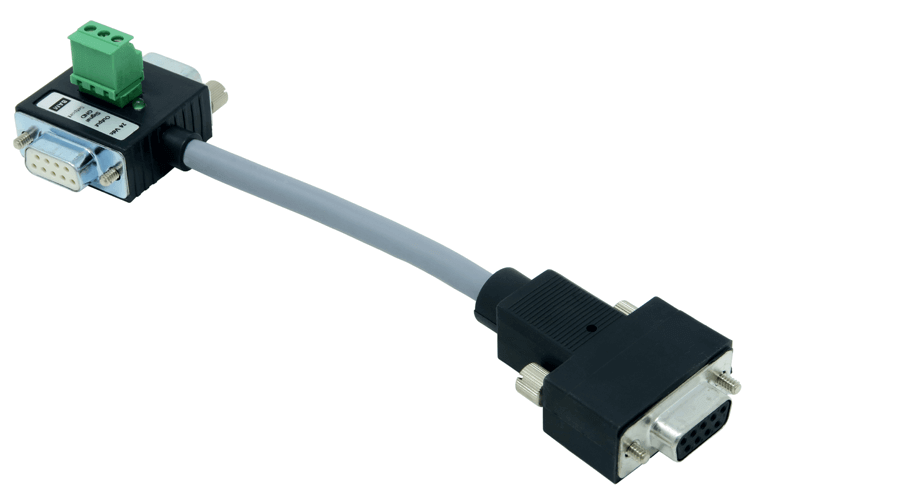

BAM 328-2151 – Bus Analog Module (0.1m)

BAM 328-2151 – Bus Analog Module (0.1m)

D-Sub network node, digital switch with additional connector for analog setpoint and reading signals
With pluggable screw terminal

» BAM PDF Datasheet

Mass Flow Meters and Controllers - Bus Analog Module BAM

PSM 328-2152 – Power Separator Module

PSM 328-2152 – Power Separator Module

D-Sub node with connector for power supply
With isolator function to link an additional power supply PSD in the bus

» PSM PDF Datasheet

Mass Flow Meters and Controllers - Power Separator Module PSM

BEC – Bus Extension Cable (0.5/2.0/5.0m)

BEC – Bus Extension Cable (0.5/2.0/5.0m)

Extension cable for digital communication and analog signals

Lenght Part-N°
0.5 m 328-2160
2.0 m 328-2161
5.0 m 328-2162

» BEC PDF Datasheet

Mass Flow Meters and Controllers - Bus Extension Cable BEC

BTM 328-2139 – Bus Terminator Module

BTM 328-2139 – Bus Terminator Module

Termination resistor for bus communication
Always recommended for a bus structure!

» BTM PDF Datasheet

Mass Flow Meters and Controllers - Bus Terminator Module BTM

PAC 328-2164 – Power Analog Cable (3.0m)

PAC 328-2164 – Power Analog Cable (3.0m)

D-Sub connector with cable for connection of a PLC or similar for use with analog setpoint and reading signals of meter/controller
Loose ends with ferrules

» PAC PDF Datasheet

Mass Flow Meters and Controllers - Power Analog Cable PAC

PDC 328-2165 – Power Digital Cable (3.0m)

PDC 328-2165 – Power Digital Cable (3.0m)

D-Sub connector with cable for connection of e.g. a PLC for digital operation of meter/controller (Modbus)
Loose ends with ferrules

» PDC PDF Datasheet

Mass Flow Meters and Controllers - Power Digital Cable PDC

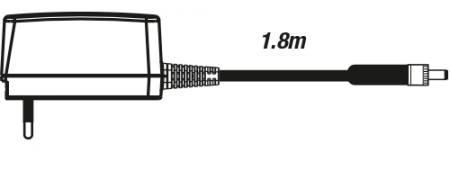

PSD – Plug-Type Power Supply Device (1.8m)

PSD – Plug-Type Power Supply Device (1.8m)

Input: 100 – 240Vac, 50 – 60Hz
Output: 24Vdc, approx. 0.5A (12W),
connector with locking ring, dia. 2.1/5.5mm

Plug Part-N°
EURO 328-2311
US 328-2312
UK 328-2313
AU/NZ 328-2314
CN 328-2315

Additional exchangeable primary connectors on request

» PSD PDF Datasheet

Mass Flow Meters and Controllers - Plug-Type Power Supply Device PSD

PSD – Desktop Power Supply Device (2m)

PSD – Desktop Power Supply Device (2m)

Input: 100 – 240Vac, 50 – 60Hz, 1.1A
Output: 24Vdc, approx. 2.2A (53W), dia. 2.1/5.5mm


Plug Part-N°
EURO 328-2233
US 328-2238
UK 328-2239
AU/NZ 328-2237

» PSD PDF Datasheet

Mass Flow Meters and Controllers - Desktop Power Supply Device PSD

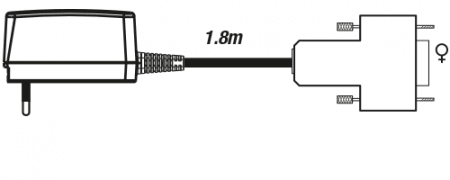

PSD – Plug-Type Power Supply Device for Display SPOT / SETSPOT (1.8m)

PSD – Plug-Type Power Supply Device fĂŒr Display SPOT / SETSPOT (1.8m)

Plug-type power supply device for direct feeding of one red-y smart with display option (read-out/operation via display function only)

Input: 100 – 240Vac, 50 – 60Hz
Output: 24Vdc, approx. 0.5A (12W), D-Sub connector

Plug Part-N°
EURO 328-2321
US 328-2322
UK 328-2323
AU/NZ 328-2324
CN 328-2325

Additional exchangeable primary connectors on request

Mass Flow Meters and Controllers - Plug-Type Power Supply Device for Display SPOT / SETSPOT

Do you need something more independent?

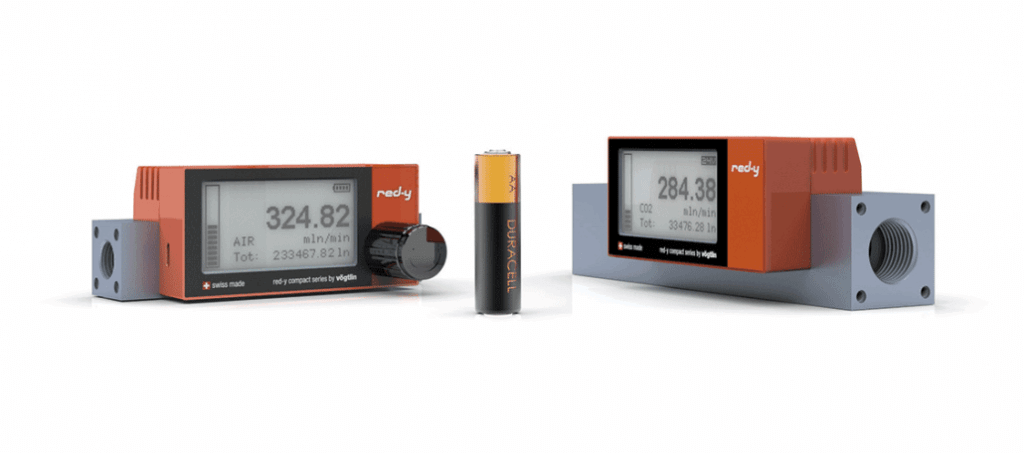

Battery Powered Digital Mass Flow Meters for Gases red-y compact series

Check out World’s first and unique Battery powered Mass Flow Meters with built-in Touch Display.

Besides clever alarm functions, the devices offer extremely precise and rapid measurement.

» red-y compact series

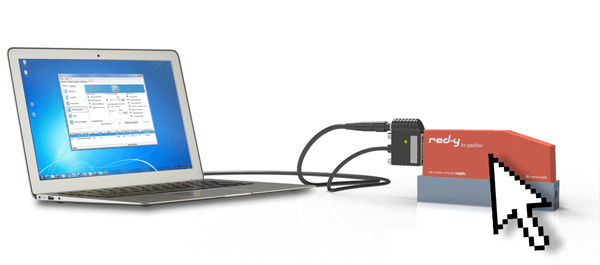

Flow Device Management made easy
