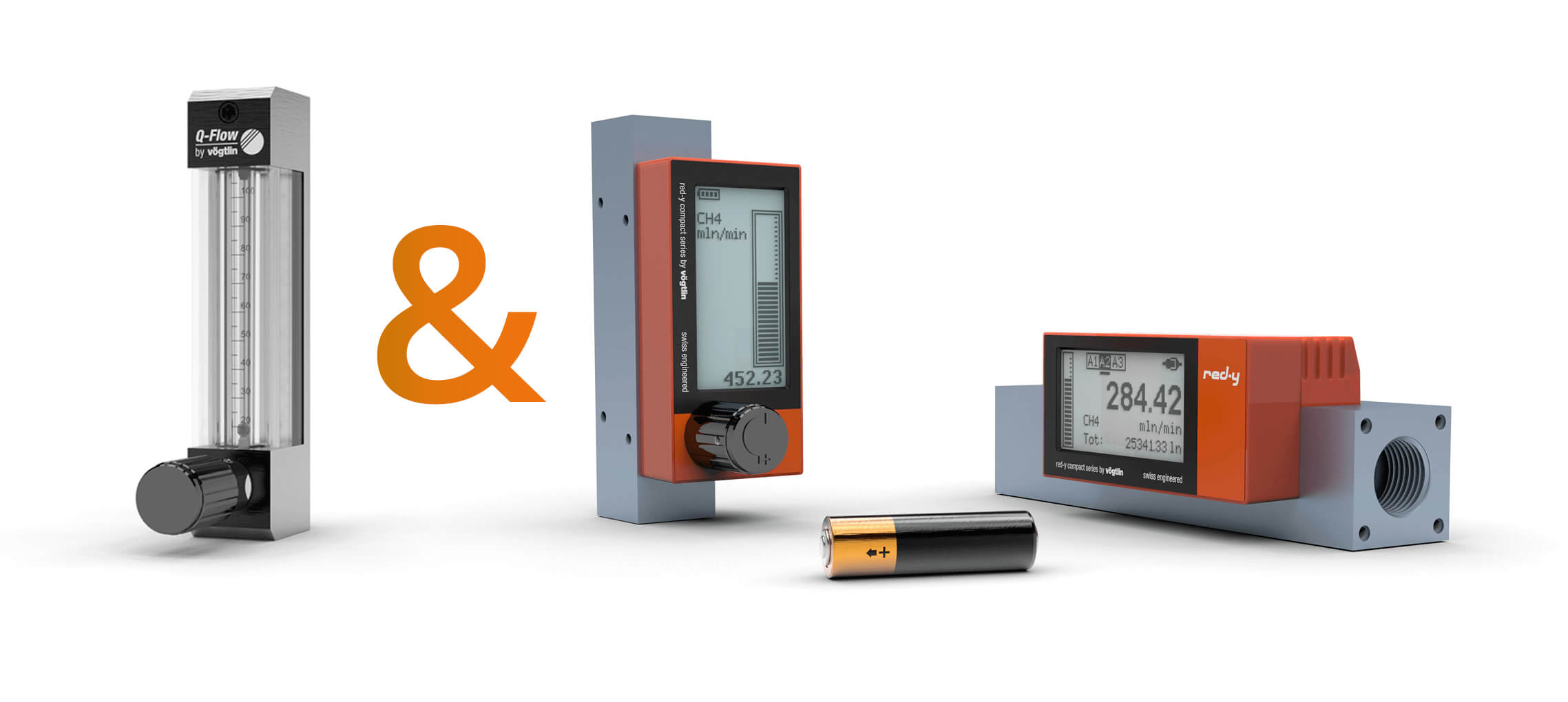

VA-Meter and High-Precision Mass Flow Meter for Gases
Variable area flowmeters for plant and apparatus construction are just as popular as ever. The numerous advantages in daily practice are convincing: cost-effective purchase, simple installation and handling, maintenance-free and independent operation.
Certain applications require measurement accuracy, with respect to pressure and temperature independence, which cannot be achieved with conventional variable area flowmeters. This is where the red-y compact 2 thermal mass flow meters come into their own. Alongside the advantages of the variable area flowmeters, the devices offer extremely precise and rapid measurement with digital CMOS sensors and run independent of mains electricity thanks to battery power.
Reasonable and secure:
Variable Area Flowmeters
Q-Flow
| Media | Gases |
| Accuracy | +/- 5% of full scale |
| Turndown ratio | 1 : 10 |
| Measuring ranges | from 60 mln/min up to 50 ln/min |
| Insensitive to pressure | NO |
| Insensitive to temperature | NO |
| Scale | Direct reading or mm scale |
| Calibration | Air |
| Manual Valve | YES |
| Totalizer | NO |
| Alarm functions | NO |
| Display of Reading | Float in measuring glass |
| Mounting position | Vertical |
| Supply | Mechanical Device |
| Body Materials | Aluminum or stainless steel |
| Seals | FKM, EPDM or FFKM |
MORE INFORMATION

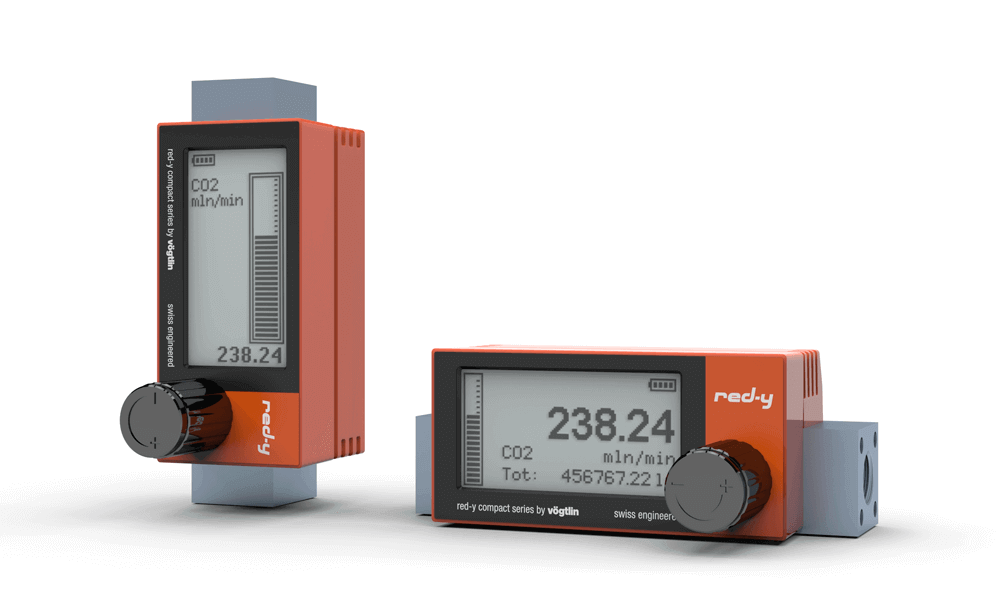

Digital advantage:
Battery powered Mass Flow Meters
red-y compact 2 series
| Media | Gases |
| Accuracy | +/- 1% of full scale |
| Turndown ratio | 1 : 1000 |
| Measuring ranges* | from 1 mln/min up to 450 ln/min *For air and N2. For other gases flow can be significant bigger or smaller |
| Insensitive to pressure | YES |
| Insensitive to temperature | YES |
| Scale | Direct reading |
| Calibration | Real Gas |
| Manual Valve | YES (optional) |
| Totalizer | YES |
| Alarm functions | YES (integrated) |
| Display of Reading | Touch-Display with automatic screen position adjustment |
| Mounting position | Any position |
| Supply | Battery, Micro-USB or 24 Vdc |
| Body Materials | Aluminum or stainless steel |
| Seals | FKM or EPDM |
